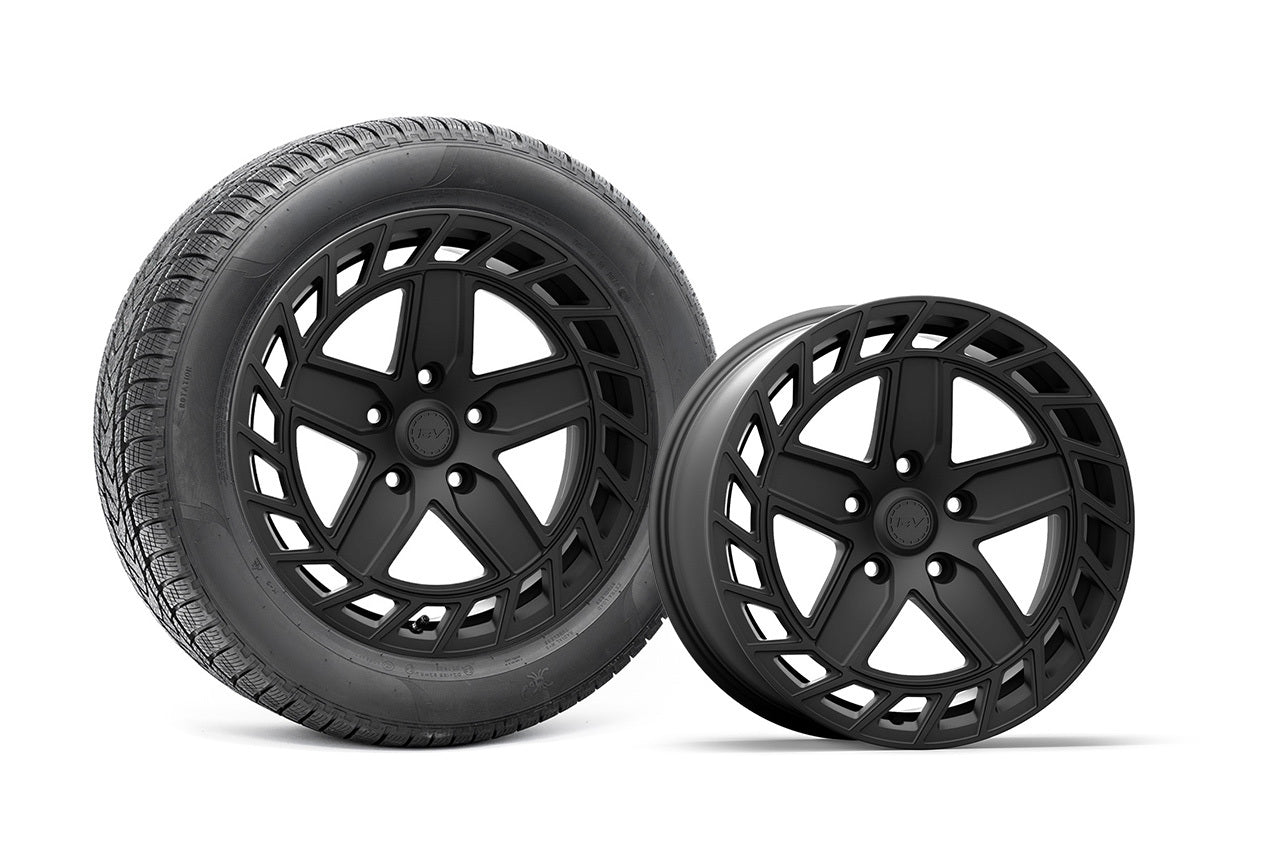

Team 1EV R500 20" Directional Aero Precision Forged Wheels & Tires for Rivian R2

R520808005114SB

Team 1EV R500 20" Directional Aero Precision Forged Wheels & Tires for Rivian R2

$4,395.00 On Sale $4,395.00

Description

Fully Forged Directional Aero Design 20" Square Fitment

1EV R500 Directional Aero 20" Rivian R2 Wheel & Tire Package

We custom machine your wheel set. ETA 4-5 weeks after order.

Meet the 1EV R500 Aero Directional Wheel, engineered exclusively for the Rivian R2 and designed to elevate both performance and presence. Developed by 1EV for EV Sportline, the R500 blends advanced engineering with a bold adventure-inspired design, delivering a wheel that's as capable on rugged terrain as it is striking on the street.

The R500's directional spoke pattern isn't just about aesthetics—it's optimized for aerodynamic efficiency and structural strength. The sculpted spokes channel airflow across the braking system while visually conveying motion even at a standstill. Each wheel is available in left and right directional configurations, ensuring the design flows correctly on both sides of the vehicle.

Crafted using advanced forged aluminum alloy construction, the R500 delivers a strong yet lightweight platform designed to complement the Rivian R2's efficient electric performance. Reduced rotational mass helps improve acceleration, handling response, and overall driving dynamics while maintaining the durability required for real-world adventure.

Vehicle Fitment Rivian R2

Wheel Size 20x8.0" Front & Rear

Construction Fully Forged

Tire Choices 255/60R20 or 275/55R20

Wheel and Tire Package Setup

One square 20x8.0" directional wheel fitment with two compatible tire-size paths. Choose the tire size that best matches your priorities for efficiency, ride quality, handling and curb protection.

20x8.0" Square

255/60R20 or 275/55R20 tire options

What Is Included

4x 20x8.0" forged directional wheels (2 left, 2 right)
4x 255/60R20 or 275/55R20 tires
4x factory-spec Rivian R2 TPMS sensors
4x color-matched 1EV wheel center caps
4x wheels and tires are supplied mounted, balanced and ready to install!

Recommended Add-On Options

Tire Road Hazard Protection — rest easy with tire-protection
Curb Protection Guards — Protect rims against scrapes
Ceramic Coating — protect the finish and make cleaning easier

Wheel Specifications

Wheel Model: R500
Vehicle: Rivian R2
Wheel Size: 20x8.0" front and rear
Offset: +38
Bolt Pattern: 5x114.3
Center Bore: 64.1mm
Construction: Fully Machine Forged
Wheel Direction: Directional; sold in sets of 2 left and 2 right wheels
Load Rating: 825 kg / 1,815 lbs per wheel
Tire Sizes: 255/60R20 or 275/55R20
Finish: Satin Black / Gloss Black / Anthracite Gray / Jupiter Bronze / Brush Satin / Diamond Black / Diamond Matte Bronze / Custom Finish
Testing Standards: JWL, VIA and SAE J2530
FEA Analysis: Tested under 3,400 lbf
Manufacturing: Manufactured in a TÜV-certified facility
Factory Hardware: Compatible with factory Rivian lug nuts, center caps and TPMS sensors

Directional Aero Engineering

Sculpted directional spokes channel airflow across the brakes through functional brake exhaust vents. Left and right wheels are side-specific, so the design flows correctly on both sides of your R2.

20-Inch Balance

The R2 sweet spot. Smoother than a harsh 21", tighter and more planted than a cushy, bouncy 19".

Forged Construction

CNC-machined and fully forged. Strong, lightweight, and built to cut rotational mass for sharper acceleration and handling.

Factory Rivian Compatibility

Accepts factory Rivian lug nuts
Accepts factory Rivian center caps
Accepts factory Rivian TPMS sensors
Includes color-matched 1EV center caps
No specialized wheel hardware is required

Square Fitment & Tire Rotation

The 20x8.0" square setup uses the same wheel and tire size at all four corners. Wheels are side-specific, so tires rotate front to rear on the same side.

Tire Comparison & Selection Guide

Both tire sizes fit the 20x8.0-inch R500 wheel. Use this quick comparison to select the size that best matches how you drive.

Compare	255/60R20 Factory size, range & winter focused	275/55R20 All-terrain & protection focused
Fitment Profile	Factory tire size Matches the Rivian R2 factory 20-inch tire size	Advantage Wider, squarer profile More wheel coverage and curb protection
Handling	Factory-like feel Closest to the original steering feel	Advantage More planted Wider footprint for added stability
Efficiency	Advantage More efficiency focused Narrower width may help maximize EV range	Traction focused Wider footprint may use slightly more energy
Ride & Potholes	Tall sidewall Approximately 6.02 inches of impact absorption	Tall sidewall Approximately 5.95 inches, a nearly identical ride cushion
Off-Road Traction	Narrower footprint All-terrain tire options available	Advantage Wider footprint More contact area and the widest all-terrain tire selection
Wet & Snow	Advantage Narrower footprint Better suited to cutting through snow, water and slush; dedicated winter tires offered	Wider footprint More oriented toward dry-road and off-road grip

Highlighted cells show the advantage for that category.

Choose 255/60R20 for:

Factory tire size
Maximum range
Winter tire options
Wet and snow use

Choose 275/55R20 for:

All-terrain selection
Off-road traction
Wider footprint
Curb protection

Performance can vary by tire brand, tire model, inflation pressure, weather, road conditions and driving style. This guide compares the general characteristics of the two tire sizes.

Available Tire Options

Tire availability varies by size and current inventory. Select a tire size below to view its available tire options.

255/60R20 Tire Options

BFGoodrich Trail-Terrain T/A+ Rivian factory tire · 255/60R20

BFGoodrich All-Terrain T/A KO3 All-Terrain · 255/60R20

Bridgestone Blizzak 6 Winter · 255/60R20

Michelin Defender LTX M/S2 255/60R20

Michelin X-Ice Snow Winter · 255/60R20

275/55R20 Tire Options

Advanta HPZ-02 275/55R20

BFGoodrich Trail-Terrain T/A+ 275/55R20

BFGoodrich All-Terrain T/A KO3 All-Terrain · 275/55R20

Falken Wildpeak A/T4W All-Terrain · 275/55R20

Goodyear Wrangler DuraTrac RT Rugged Terrain · 275/55R20

Mickey Thompson Baja Boss A/T All-Terrain · 275/55R20

Nitto Terra Grappler G3 All-Terrain · 275/55R20

Nitto Recon Grappler A/T All-Terrain · 275/55R20

Pirelli XTM AT All-Terrain · 275/55R20

Toyo Open Country A/T III EV All-Terrain EV · 275/55R20

Important Fitment Notice The R500 20x8.0" wheel is designed for Rivian R2 applications. Confirm your vehicle configuration and selected tire size before ordering.
