1TG9000
$2,750.00 $2,995.00 On Sale $2,750.00
Shipping Starts Late 2024 -Secure your place in line now!
The Tesla Cybertruck has established itself as a standout in the modern pickup truck arena. Tesla emphasizes that the Cybertruck is built to be durable and rugged, capable of handling any challenge. At T Sportline, we aim to enhance this mission by designing and manufacturing upgrades and accessories for the Cybertruck.

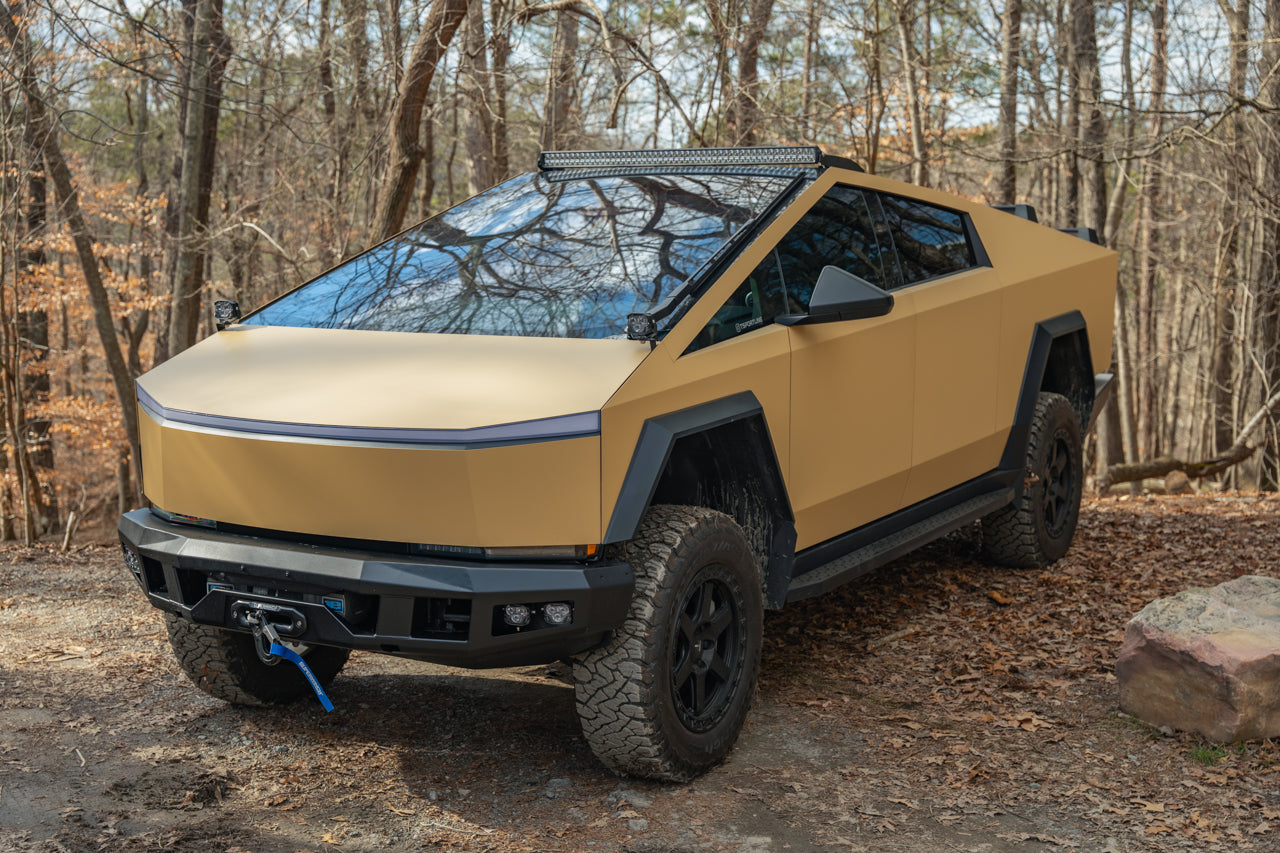

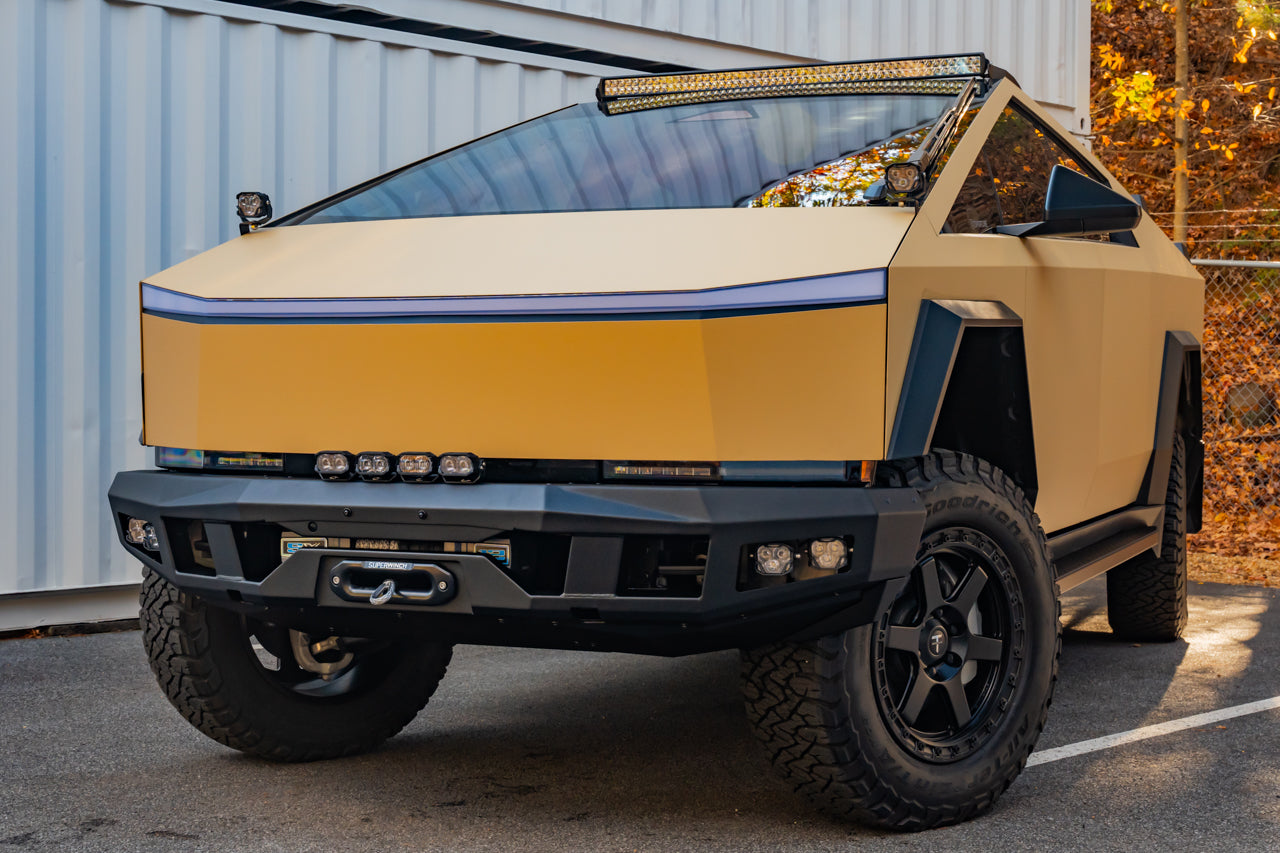

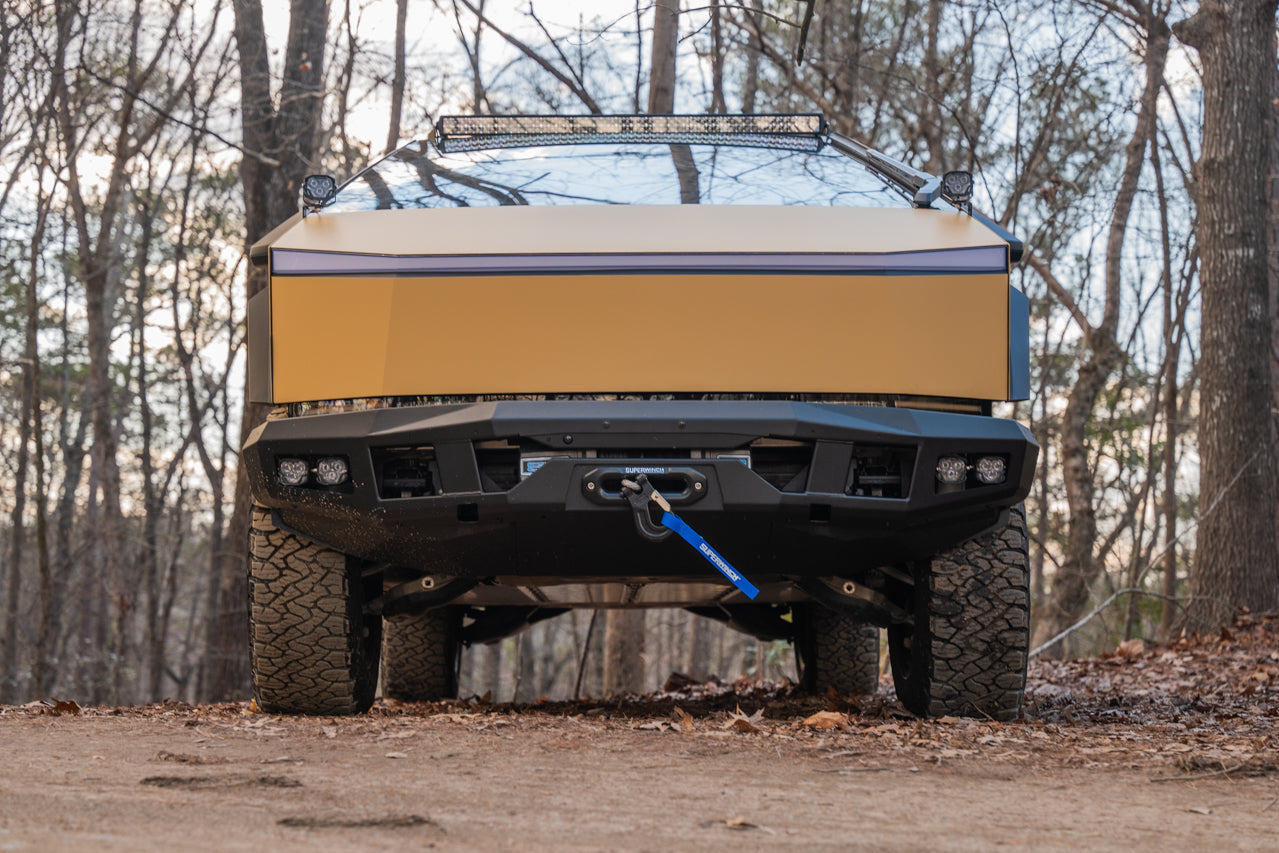

Introducing the T Sportline CTX Bumper, crafted from the ground up to deliver the most extreme-duty bumper available for the Cybertruck. This bumper seamlessly combines utility, protection, and the distinctive design language of the Cybertruck.
With decades of experience in off-roading and overlanding, our team focused on creating a bumper that excels in performance, aesthetics, and practical functionality. The CTX Bumper isn’t just about its bold, rugged look; it also offers essential features for off-road recovery, vehicle protection, a powerful 12,000 lb winch, and versatile lighting options.
Structure and Load Path Strategy:
The first step in our design process involved a thorough analysis of the Tesla Cybertruck's frontal subframe and factory bumper. After removing the plastic bumper, we conducted a complete laser scan of the underlying structure, which served as the foundation for our structural engineering analysis and the development of a bumper attachment and load path strategy. We've identified certain limitations within the Cybertruck's structure and have meticulously optimized our design to ensure the best possible load path.
Bumper Specifications:
The welded steel bumper is engineered to replace all factory plastic components, including the front underside parts. The T Sportline CTX Bumper is made from CNC-press-brake formed alloy steel, fixture welded, and finished with a triple coating of phosphate treatment, e-coating, and textured black powder coating. It maintains the functionality of the front camera, Bluetooth sensor, and OEM tow hooks. Additionally, the bumper includes integrated hi-lift jack points, license plate mounts, and built-in provisions for mounting outer fog light LED pods, as well as center LED pods or light bars.
Auxiliary 12v High-Output (HO) Power:
The factory Cybertruck auxiliary power pre-wire (found under the frunk liner and toggled on/off in the center screen) is limited to 350 continuous duty watts (rated 400 peak watts). Educated enthusiasts will recognize this power limitation is simply impossibly low for operating an adequate strength winch or ultra-high powered off-road lighting. And connecting a high load winch or lighting directly to the onboard 48v lithium battery is not an acceptable option either. Rest easy, our engineers have developed several solutions including a base 12v conversion kit (sufficient for most lighting) and for winches (or ultra-high powered lighting) our highly innovative, self contained auxiliary power system complete with plug-and-play onboard BMU to ensure up to a huge 800 amps / 9600 watts of power! Our optional power system enables using and works seamlessly with most all aftermarket 12v winches and the highest output 12v LED lighting. The T Sportline high-output power systems are enclosed in a box which bolts-on in the frunk and includes a plug-and-play harness which includes a battery management unit and charger which is powered directly from the Cybertruck. We offer two High-Output Power systems with varying battery chemistry and power levels. Base battery chemistry is AGM is an absorbed glass mat lead-acid battery - these are very high performance, but weigh more than lithium ion. Our premium batteries are deep-cycle LiFePO4 lithium ion dry cell batteries, which offer a significant light weight advantage. The frunk mounted power box is 18" x 10" x 11". Note - not compatible with Tesla Cybertruck Cooler for Frunk. To order, select desired 'add-on' power system above.
Standard Output 12v Auxiliary Power (suitable for most lighting)
High Output 12v Auxiliary Power (Required for Winch or max power lighting):
Winch Options:
We recommend a 12,000lb winch for proper recovery capability on your Cybertruck. Our Auxiliary High-Output Power system is design to support the power draw and rigors expected from 12,000lb winches or smaller. While we offer a selection of quality winches, we designed our CTX bumper to work with industry standard 10" x 4.5" base pattern winches (overall envelop 24" x 10.75") - you can supply your own winch if desired. The winch is a bolt-on option and can be added at any point. To order, select desired 'add-on' power system and winch above.

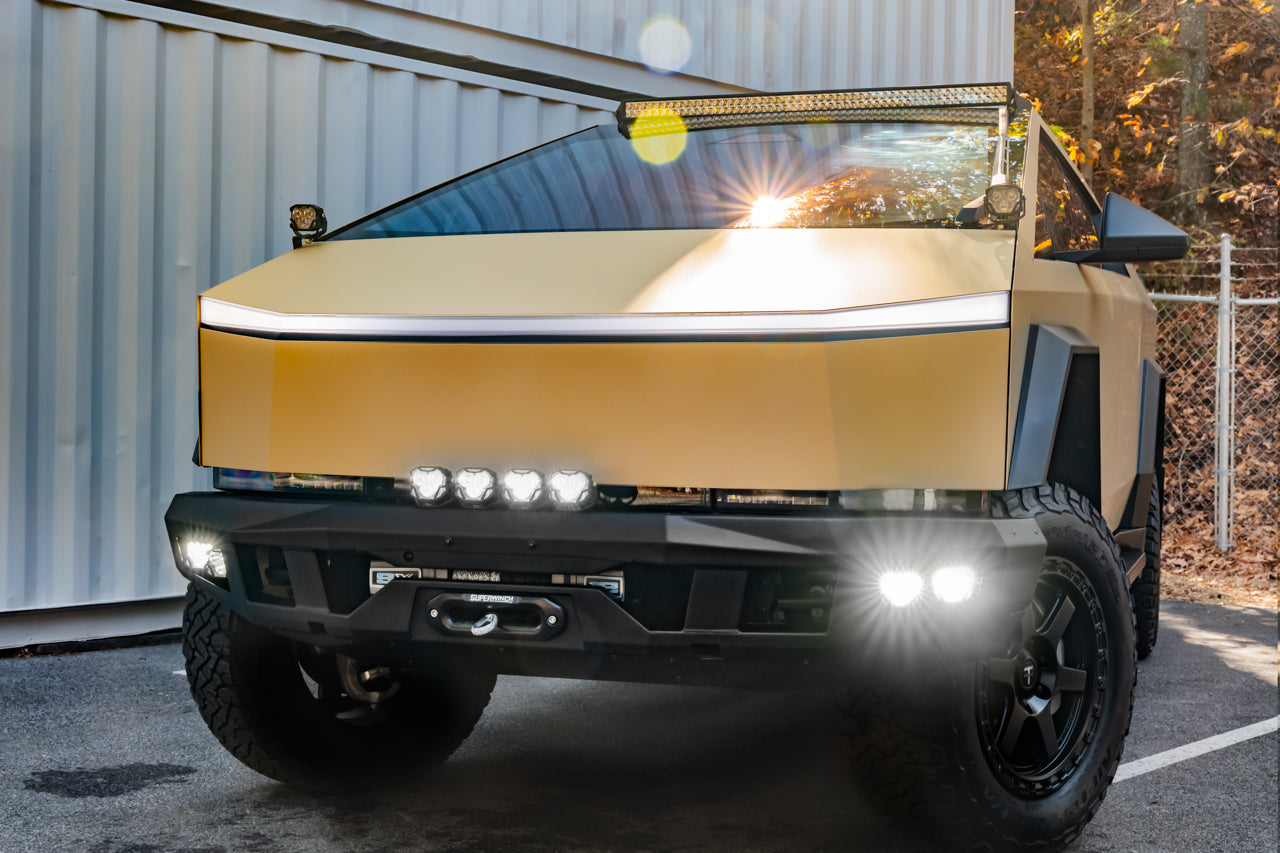

Auxiliary Fog, Recovery, and Off-Road Lighting Options:
We have extensive expertise in off-road lighting, backed by two former Morimoto engineers on our team—so you can trust that our specified systems are among the top-performing options available. You can start by choosing your configuration: opt for a basic 4-pod setup with outer position lighting, or go for our full 8-pod configuration that includes both outer and center positions for maximum illumination. Within each pod position, you can select the LED pod that best fits your needs, with various brands, power levels, lens options, and colors available. All our lighting kits come with an exclusive plug-and-play wireless remote control, allowing you to easily toggle your lights on and off without running wires into the cab. Additionally, our CTX bumper features industry-standard pod mounting bosses, enabling you to create a custom lighting system with any compatible lights you prefer. To order, select desired 'add-on' power system and lighting system above.
For lighting options, we offer Morimoto 2Banger and 4Banger LED pods. These are market leading performers, with the most modern LED drivers, precision engineered optics, and very best light output. 2Banger NCS are the standard 2-chip LED pod, suitable for base budget high performance (13.5W / 1A / 900lm per Pod). HXB is a step-up in power (24W / 1.8A / 2000lm per Pod). For those seeking a square pod (tri-LED chip), we offer 4Banger, starting with NCS power (15.6W / 1.5A / 1350lm). Our maximum performance pod is the HXB 4Banger (42W / 3.2A / 3000lm).
From a beam optics perspective, we offer all available options. It's typical for enthusiasts to select and mix different beam patterns for each pod when multiple use cases are being considered. Beam optics include Combo, Spot, Wide, and Flood. The most general purpose is Combo beam. Spot will give max distance, very concentrated. Flood will fill the forefront with as much light as possible without too much concentration. And Wide is a street legal SAE spec fog optic - basically short range.
Finally, lens color can be specified as standard white or fog-centric yellow. Feel free to mix colors, which is common to couple a pair of yellow and a pair of white.
