    Rivian R1S - Rear Cargo Drawer Storage Command Box - Vehicle Specific Bolt-in

    Select Options
    z
    z
    • Description

      New Exclusive!

      Lead time to build: 6-8 weeks ARO



      Building off the success of Team 1EV's R1S rear lower cargo vault and R1T gear tunnel storage system, our engineers set out to design the ultimate rear cargo drawered storage command box for the Rivian R1S.   A common ask from our Patrol EV upfitting division has been to create a Havis command box ecosystem for the rear cargo area in a Rivian R1S, in a vehicle-specific manner, with a setup that bolts-i, fits perfect and feels like an OEM option.   The Rear Cargo Havis Drawer Storage Command Box for Rivian R1S fitment is truly designed and perfected as a bolt-in solution, engineered exclusively from scratch to fit the Rivian R1S rear cargo area.   Once installed, the unit fits in the existing R1S rear cargo space without any modification.   The setup is offered in our most common configuration as shown, or can be custom configured with the exact Havis sub drawer configuration you prefer.


      Specifications:

      • Designed and engineered by EV Sportline using Havis command box core
      • Designed to utilize open space in rear cargo area of Rivian R1S
      • CNC laser cut and formed alloy aluminum construction is black texture powder coated
      • Heavy-duty construction, designed for extreme duty
      • Quick and easy bolt-in (no modifications) installation -- Requires removal of the bench seat (replaces)
      • Rivian R1S specific product, designed and engineered by Team 1EV
      • Made in the USA 🇺🇸

      Configurations:

      Adjustable mount allows the drawers to fit fully behind the spare tire well access panel, or the drawers can be adjusted by 6" towards the rear hatch.  Bottom drawer must be 40" wide. Top drawer (optional) can be 40" or 46". Two 8" drawers match the height of the second row seat.

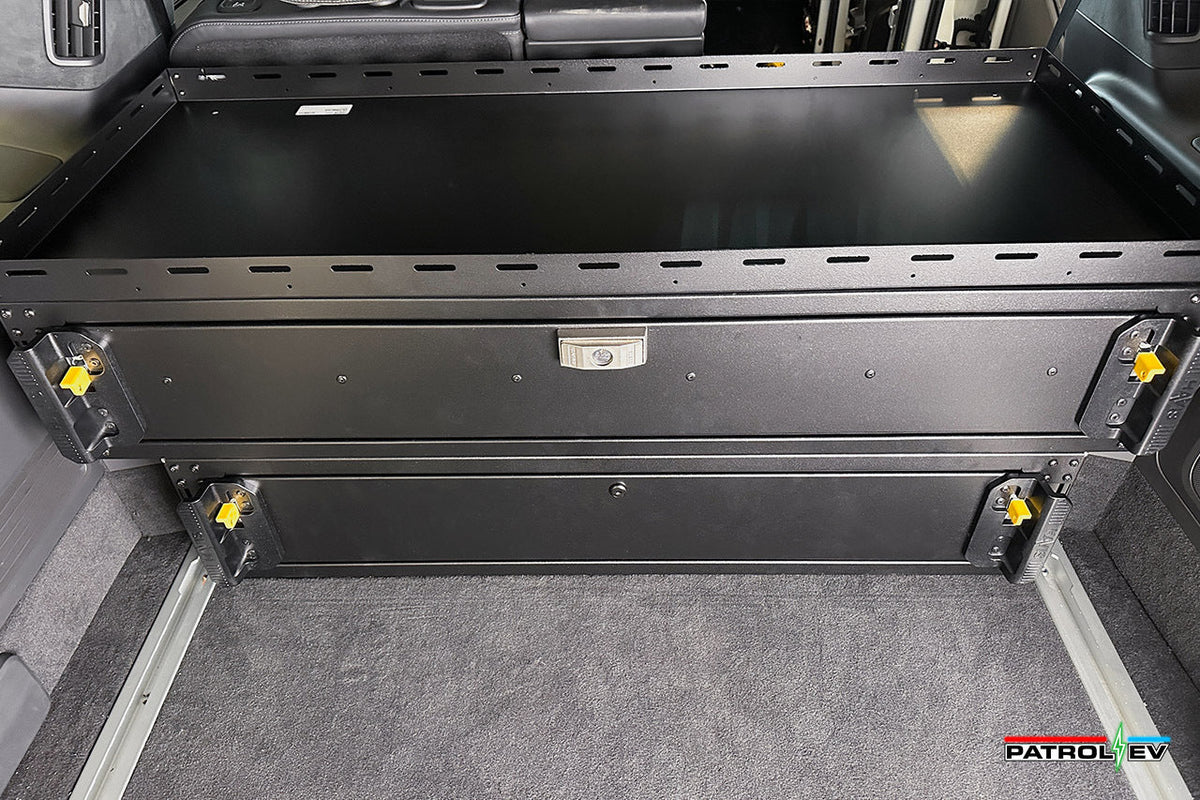

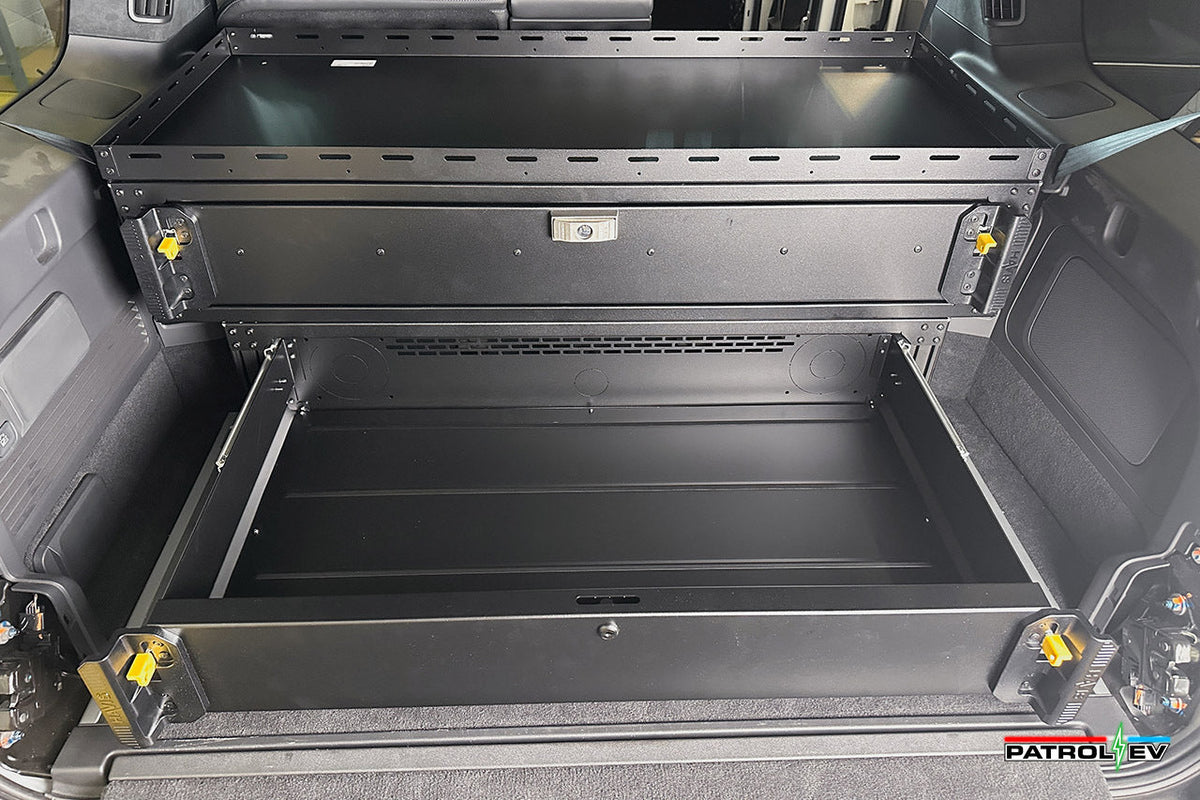

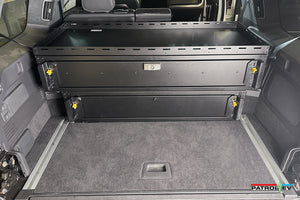

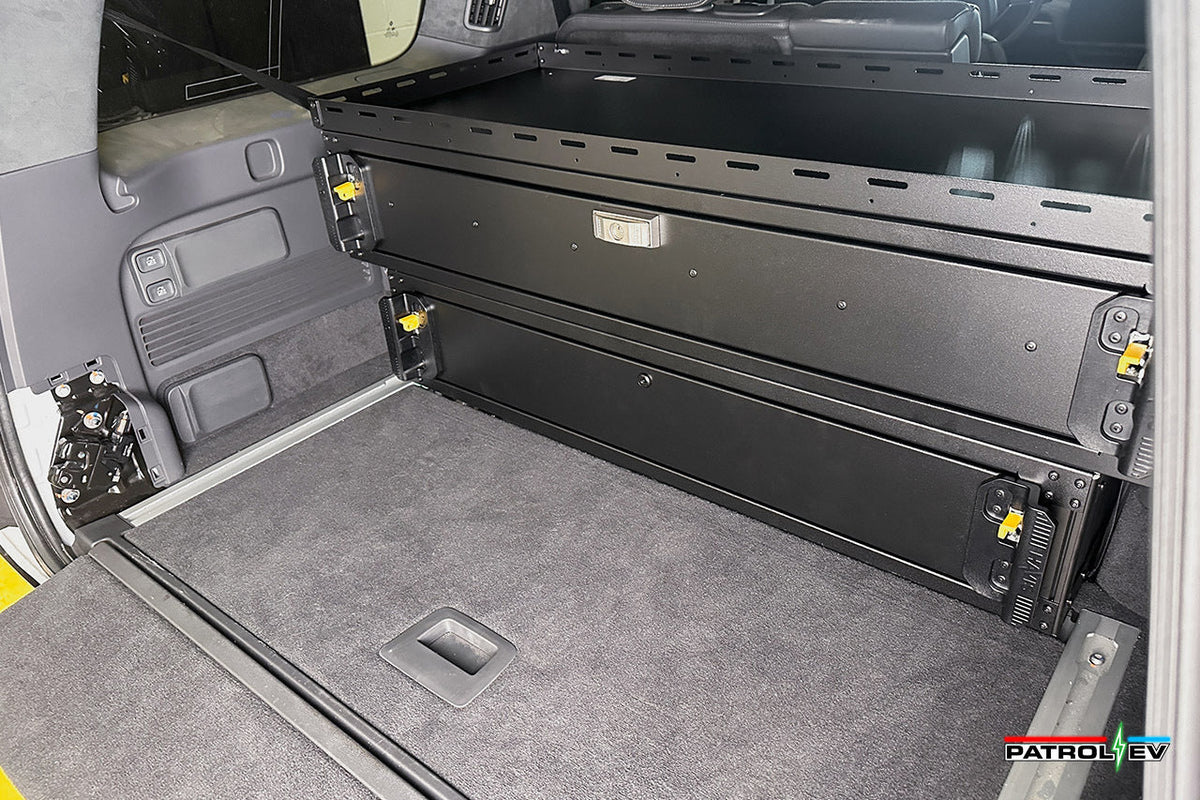

      Shown Configuration Includes:
      • Base Box: SBX-1001 - 8" tall with Medium-Duty Lock
      • Top Box: SBX-1012 - 8" tall with Heavy-Duty Lock
      • Top Cover Option: Shelf



      Custom Options:

      Base or Top: 40" Options:
      • SBX-1001 - 8" tall with Medium-Duty Lock (used in default configuration)
      • SBX-1002 - 8" tall with Heavy-Duty Lock
      • SBX-1007 - 8" tall with Push-Button Combination Lock
      • SBX-1004 - 12" tall with Medium-Duty Lock
      • SBX-1005 - 12" tall with Heavy-Duty Lock
      • SBX-1008 - 12" tall with Push-Button Combination Lock



      Top Only: 46" Options:

      • SBX-1011 - 8" tall with Medium-Duty Lock
      • SBX-1012 - 8" tall with Heavy-Duty Lock (used in default configuration)
      • SBX-1010 - 8" tall with Push-Button Combination Lock
      • SBX-1014 - 12" tall with Medium-Duty Lock
      • SBX-1015 - 12" tall with Heavy-Duty Lock
      • SBX-1016 - 12" tall with Push-Button Combination Lock



      Top Cover Options:
      • Flat
      • Shelf (used in default configuration)
      • Locking slam-latch lid (40" top drawer only)
