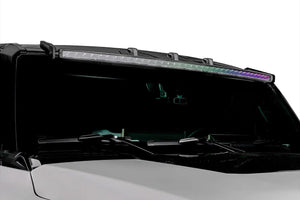

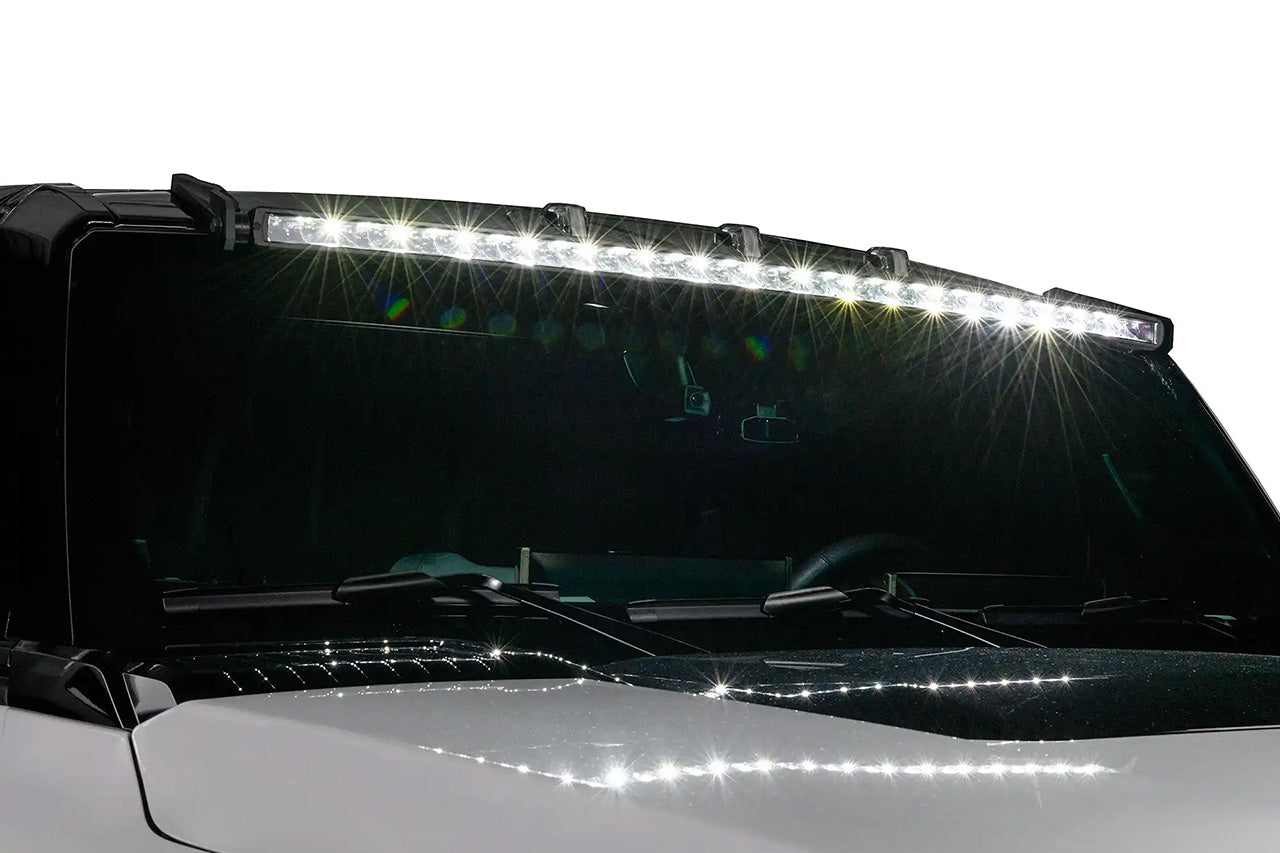

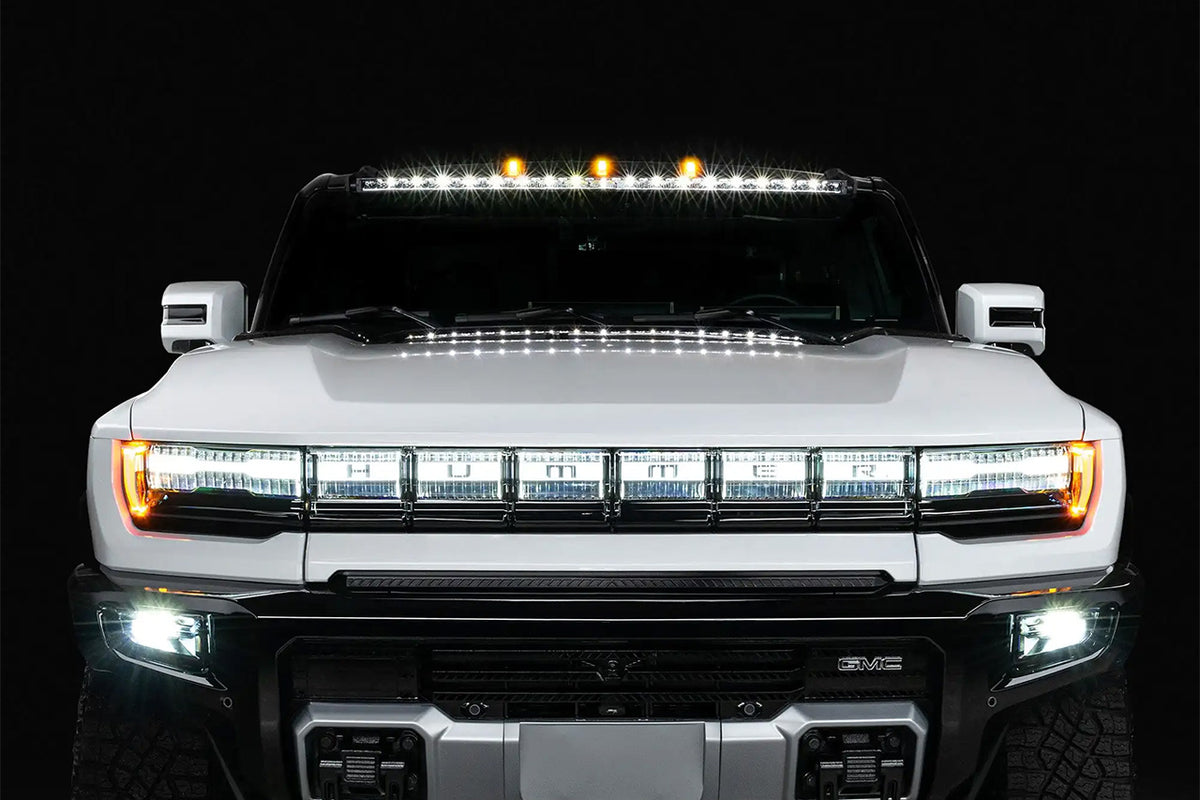

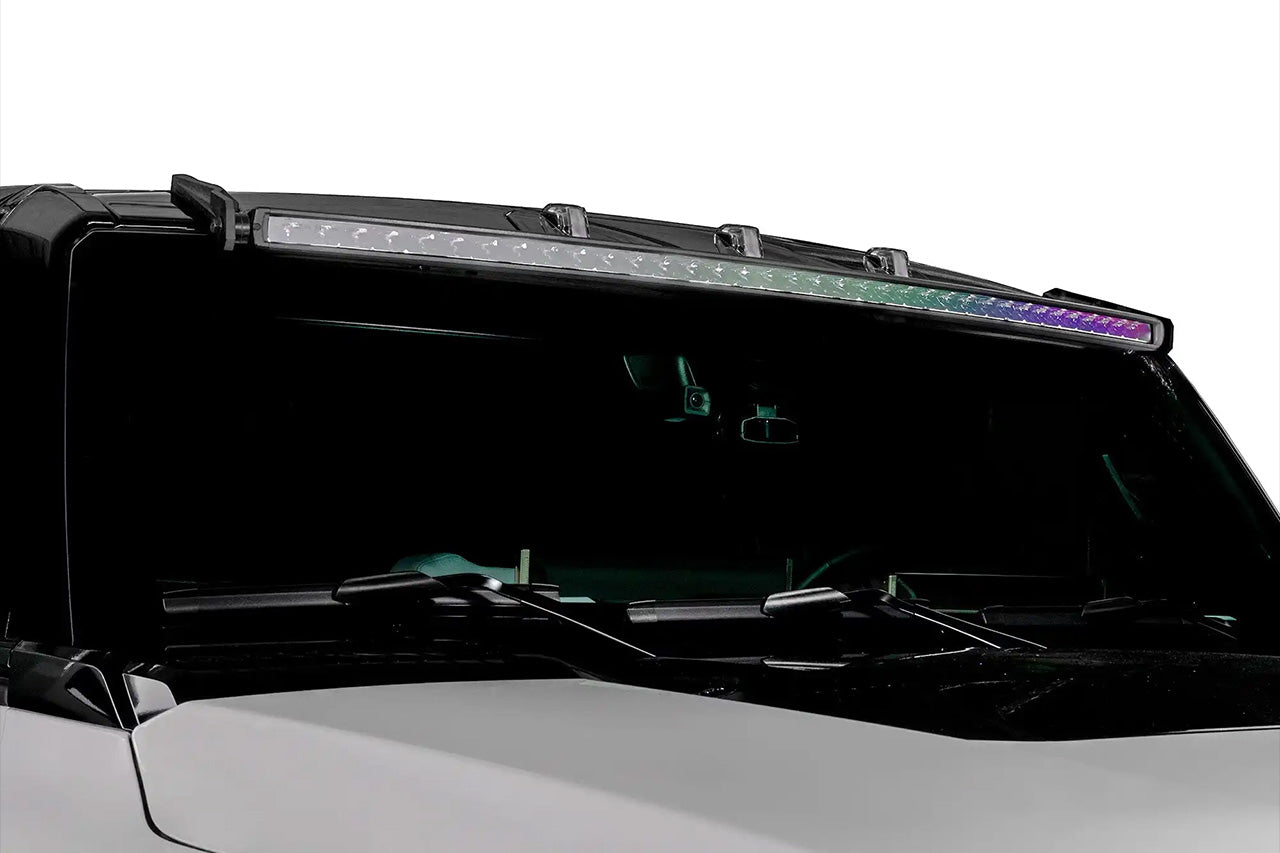

Illuminate the road ahead with our 50" Low-Profile Curved LED Light Bar—engineered exclusively for the Hummer EV. Its sleek, low-profile design minimizes wind noise and maintains full visibility of the factory cab clearance lights. Each CAD-designed bracket ensures a perfect fit and hassle-free installation.

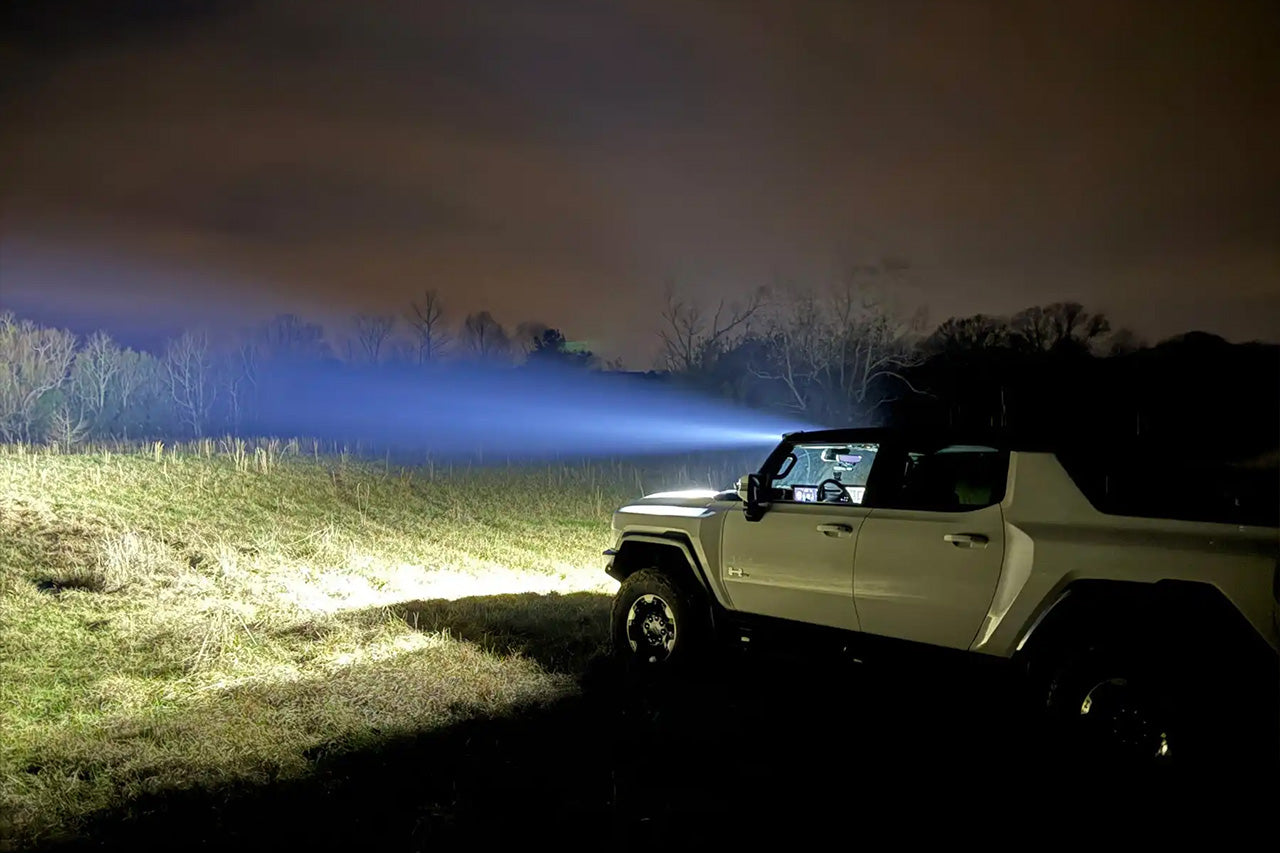

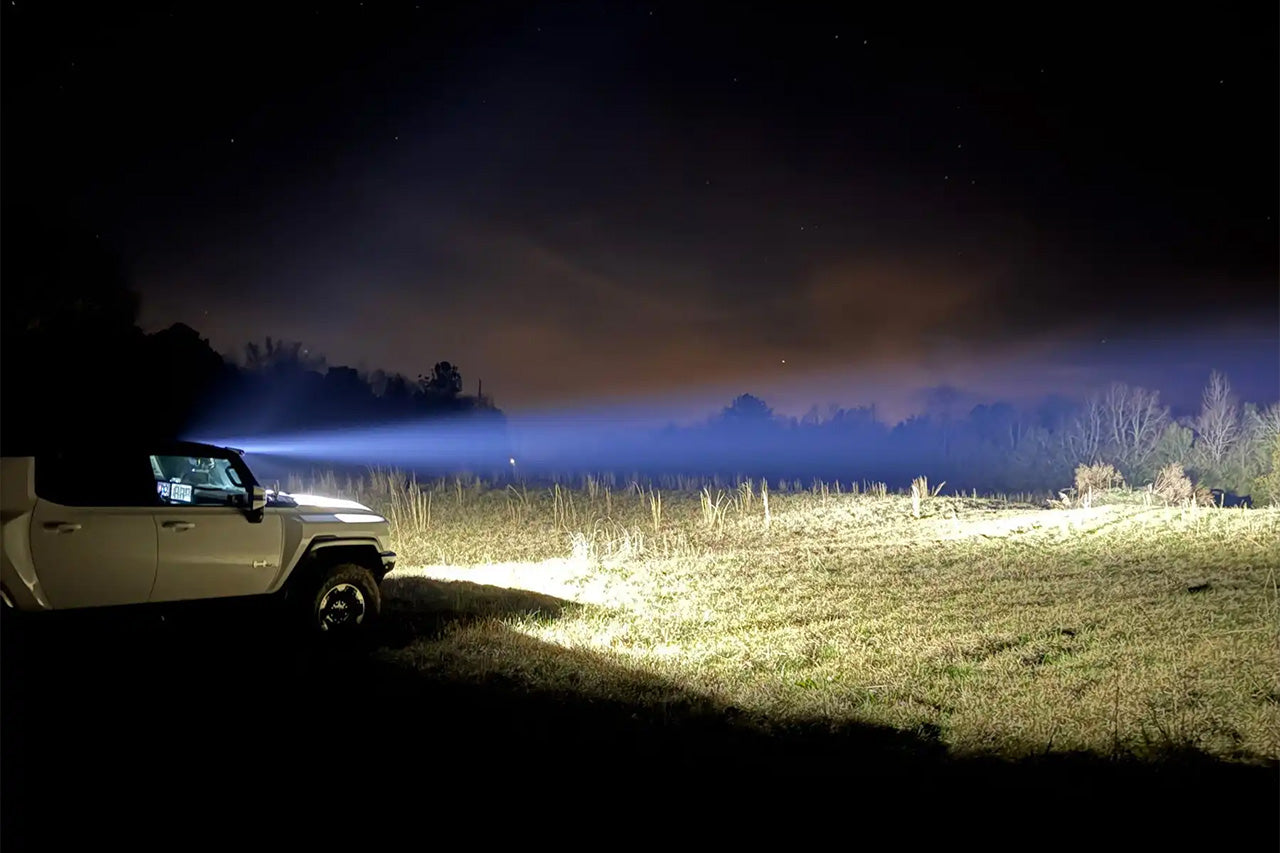

Delivering an impressive 22,200 lumens of brightness and projecting light over 2,000 feet, this light bar is built for unmatched visibility and performance. Its curved housing is precision-matched to the Hummer’s windshield, setting it apart from generic alternatives in both quality and design.  The Light Bar utilizes reflector-facing LED technology, a major advancement over standard forward-facing designs. With 30 high-efficiency 8W LEDs, the system produces a powerful 18,000 raw lumens of optimized output.

A multifunction feature allows you to select between amber or white lights, connecting them to your preferred setup—whether that’s an auxiliary switch, parking lights, DRL, or leaving them inactive. This flexibility ensures seamless integration and a custom lighting experience tailored to your Hummer EV.

The Light Bar is made by Oracle Lighting and EV Sportline offers three custom kits, to serve different Hummer EV wiring and control options.  If you have the Hummer EV Auxiliary Power Relay setup, all you need is our Light Bar and some extra 18awg wire to install.   For those who do not have the Auxiliary Power Relay setup, we offer two complete kits -- one with a traditional push button switch (requires routing wires into the cab and mounting the switch), and one that is simply plug-and-play, fully under the hood with NO wires routed into the cab - includes a remote control key fob to operate the light bar!

Wiring Options:

1 - Light Bar Kit Only:Can be connected to factory Aux Switches (Requires you have GMC pn 86587305) which will utilize factory center screen programmable controls.   Light bar wires will need extended to reach the relay box, using 16AWG wire.

2 - Light Bar Kit with Power Relay Harness and Push Button Switch: Use a power relay with push button switch.  For this option we include the premium & weatherproof Morimoto switch relay harness and illuminated push button switch.  The switch wire must be run into the cab and the switch will need mounted in a 3/4" hole. Switch shown:

3 - Light Bar Kit with Power Relay and Remote Key Fob Control:  Use a power relay with remote control key fob.  For this option we include the premium & weatherproof Morimoto switch relay harness and our remote control key fob.  No wires run inside the cab, making this an easy installation.

Detailed Specifications:

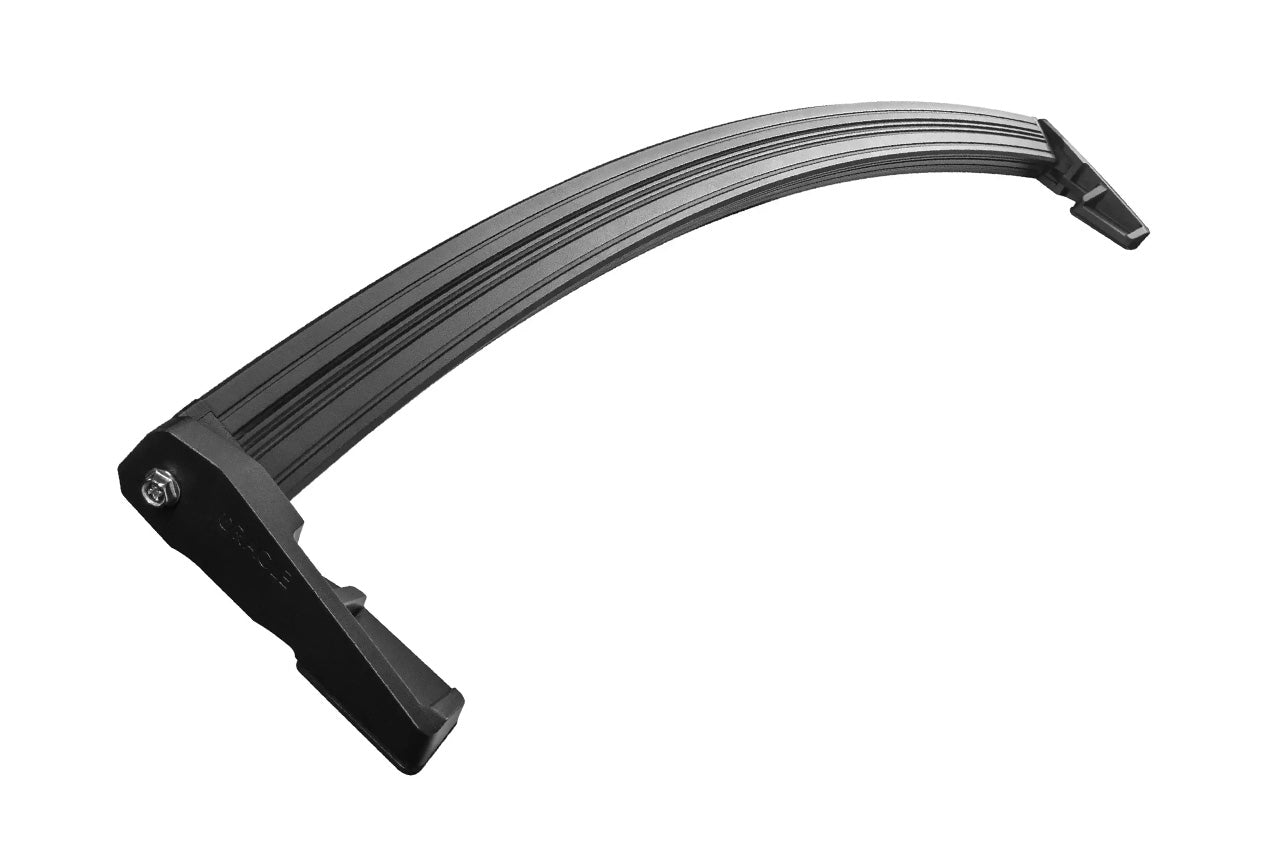

Bracket:

• Material: Cast Aluminum
• Finish: Black Powder Coat
• Fitment: Low Profile Hummer EV Spec
• Rubberized Base Gaskets


LightBar:

• High-Powered Lighting 36x 7W LED Main Light

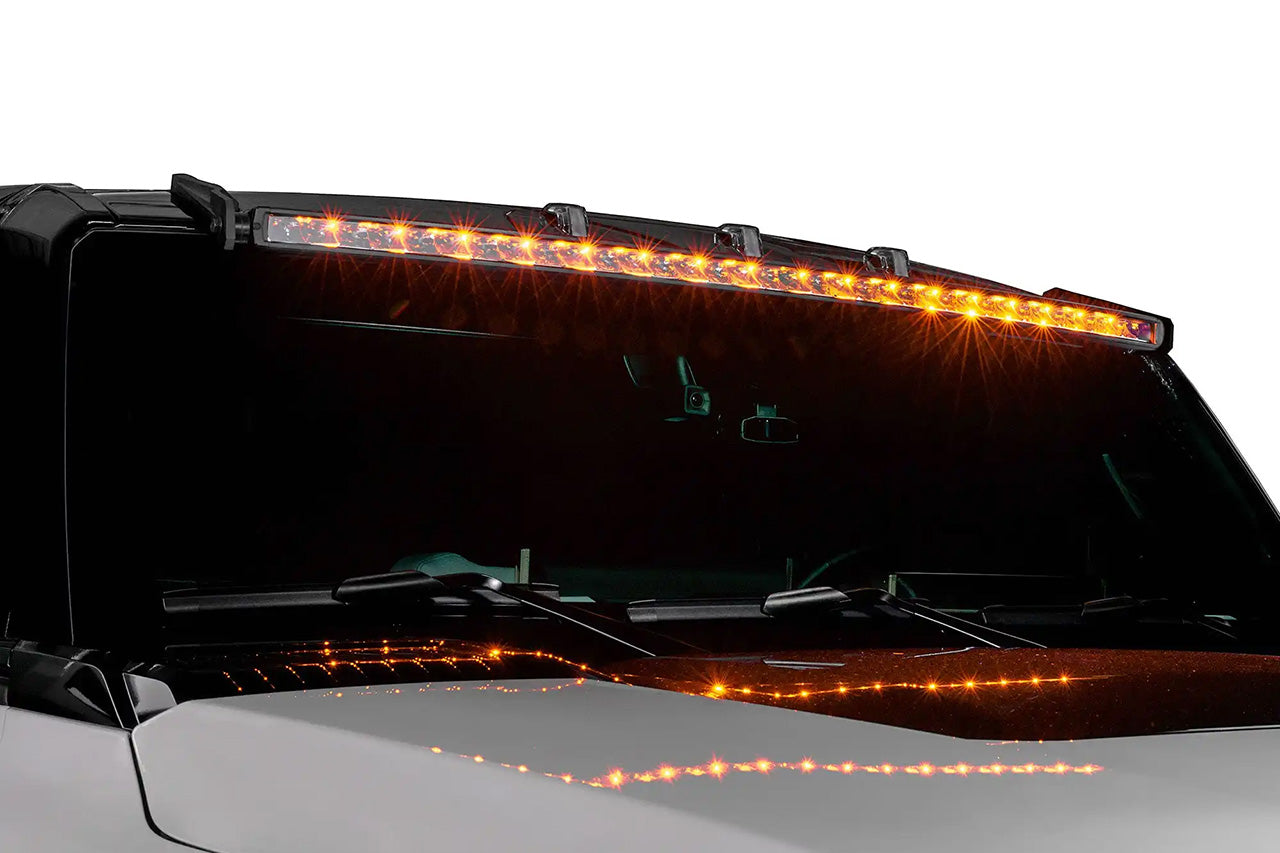

• Selectable Amber or White Clearance Lights

• Precision LED Reflector-Facing Technology

• Under/Over Voltage and Reverse Polarity Protection

• Electronic Thermal Management

• Innovative Patent-Pending Design

• Designed and Engineered in the USA

• LED Lifespan 50,000+ Hours

Light Bar Driving Beam Output Performance:

• Raw Lumen Light Output: 22,200LM

• Effective Lumen Light Output: 18,800LM

• Total Wattage: 252 Watts

• Total Amp Draw: 16 Amps @12V DC

• Beam Angle: 50° Driving Beam

• Max Projection Distance: 1Lux@460M

• Color Temperature: 5500K-6000K

• Advanced Optic Design for Optimal Visibility



Lightbar Housing:

• Outer Housing Material: Polycarbonate

• Lamp Housing Material: 6030 Aluminum

• Reflector Material: Plated Polycarbonate

• Lens: Material: Lexan Polycarbonate

• Lamp Finish: Polyester Powder Coat

• Stainless Steel Anti-Fog Breather Valves

• Molded IP68 Waterproof Connectors

• Waterproof Rating: IP69 Ingress Protection

What is included:

• 2022-Present Hummer EV 50" Roof Mount Curved Light Bar
• Hummer Specific Mounting Brackets
• Mounting Hardware, Wire Harness & Weather Gasket
• Instructions are HERE
