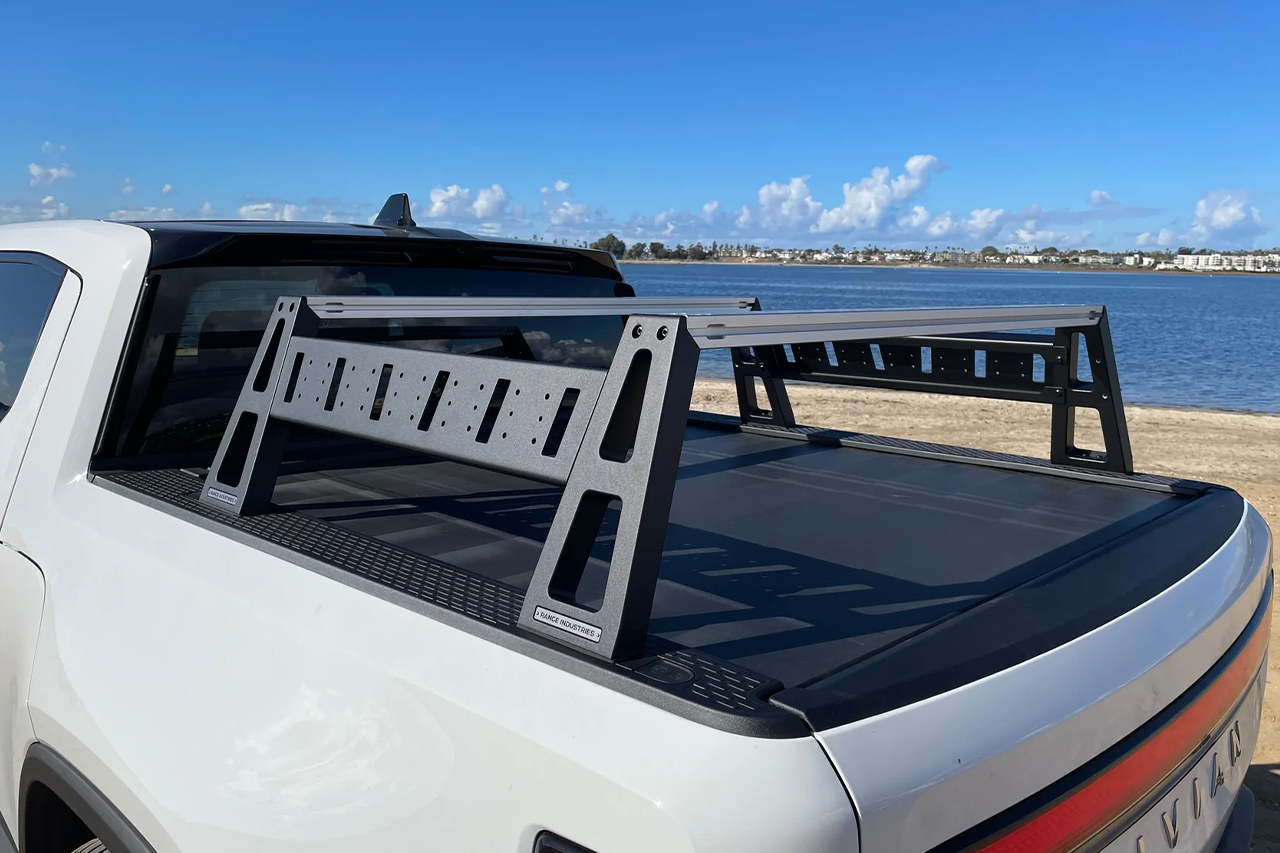

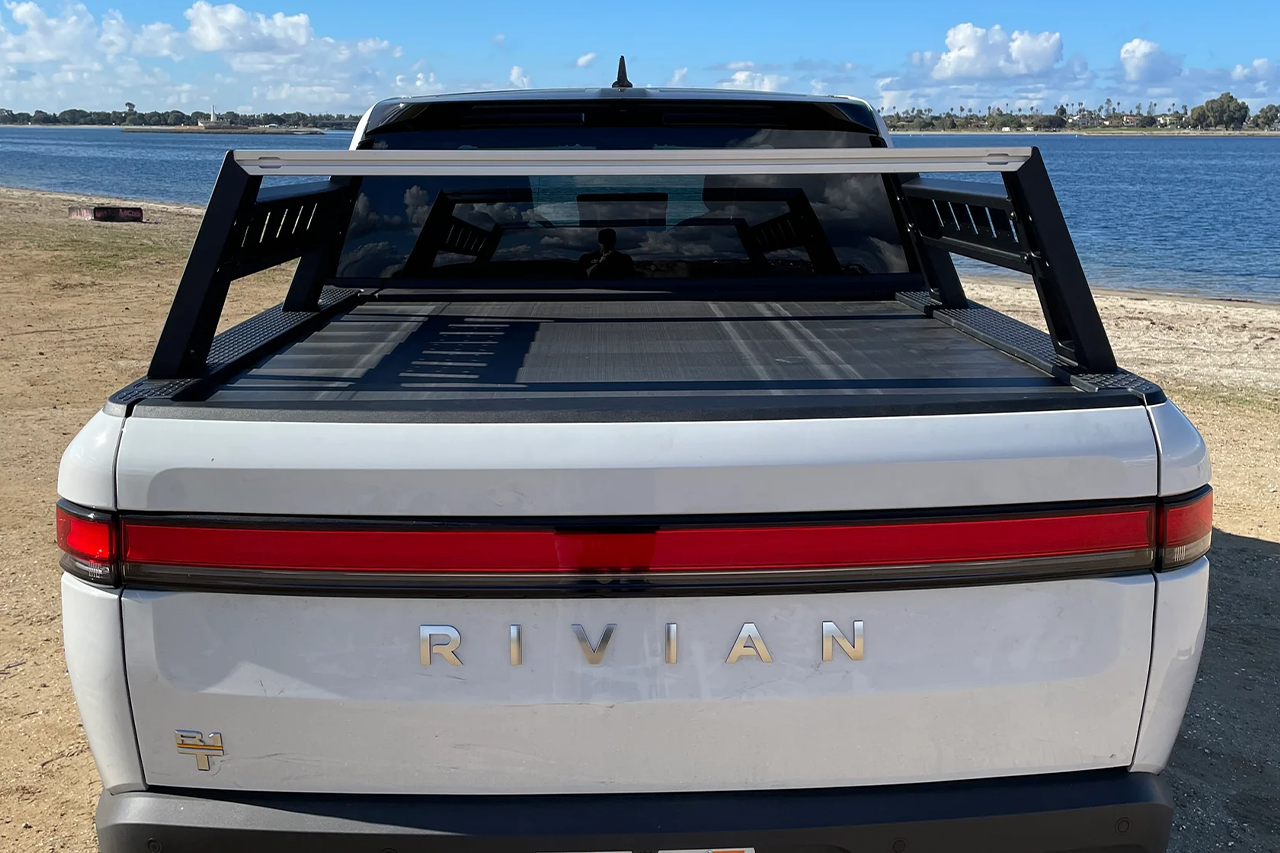

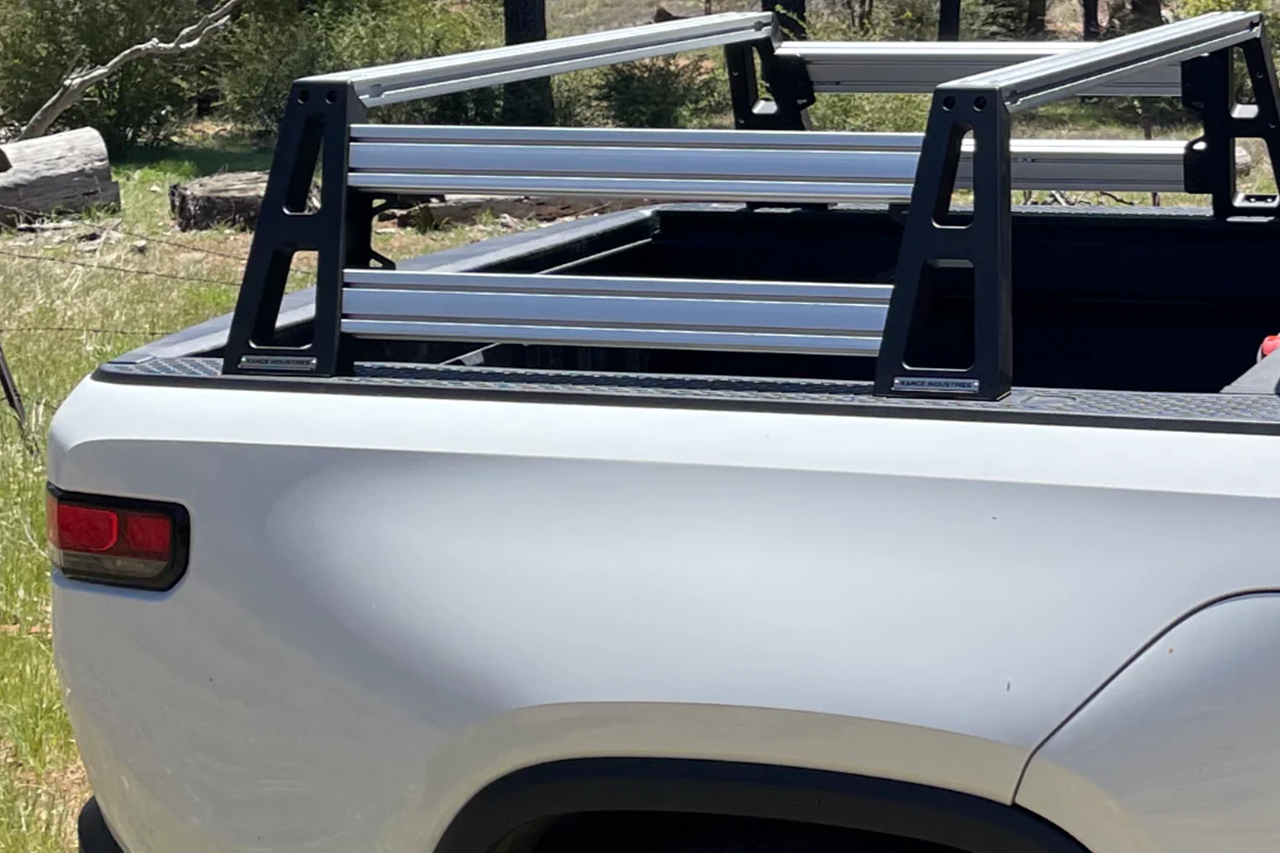

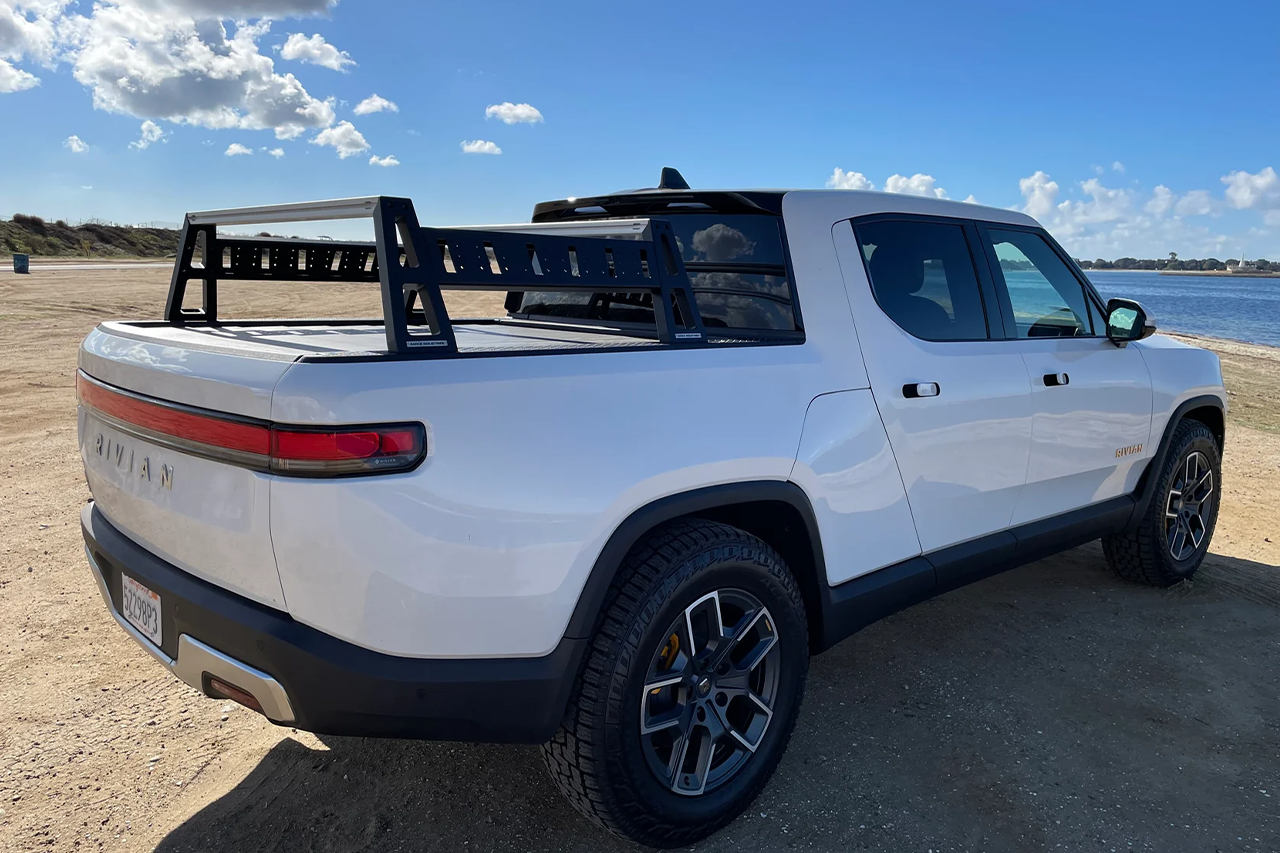

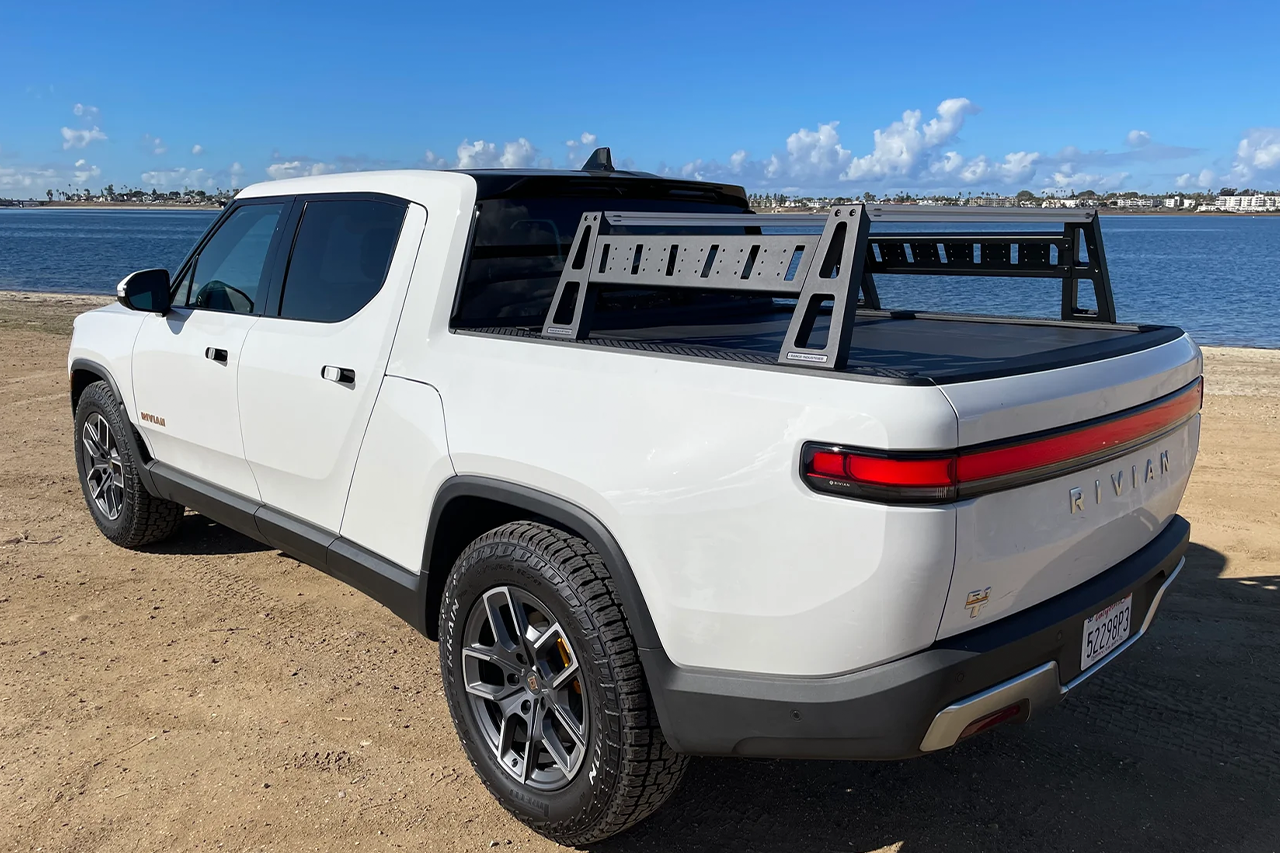

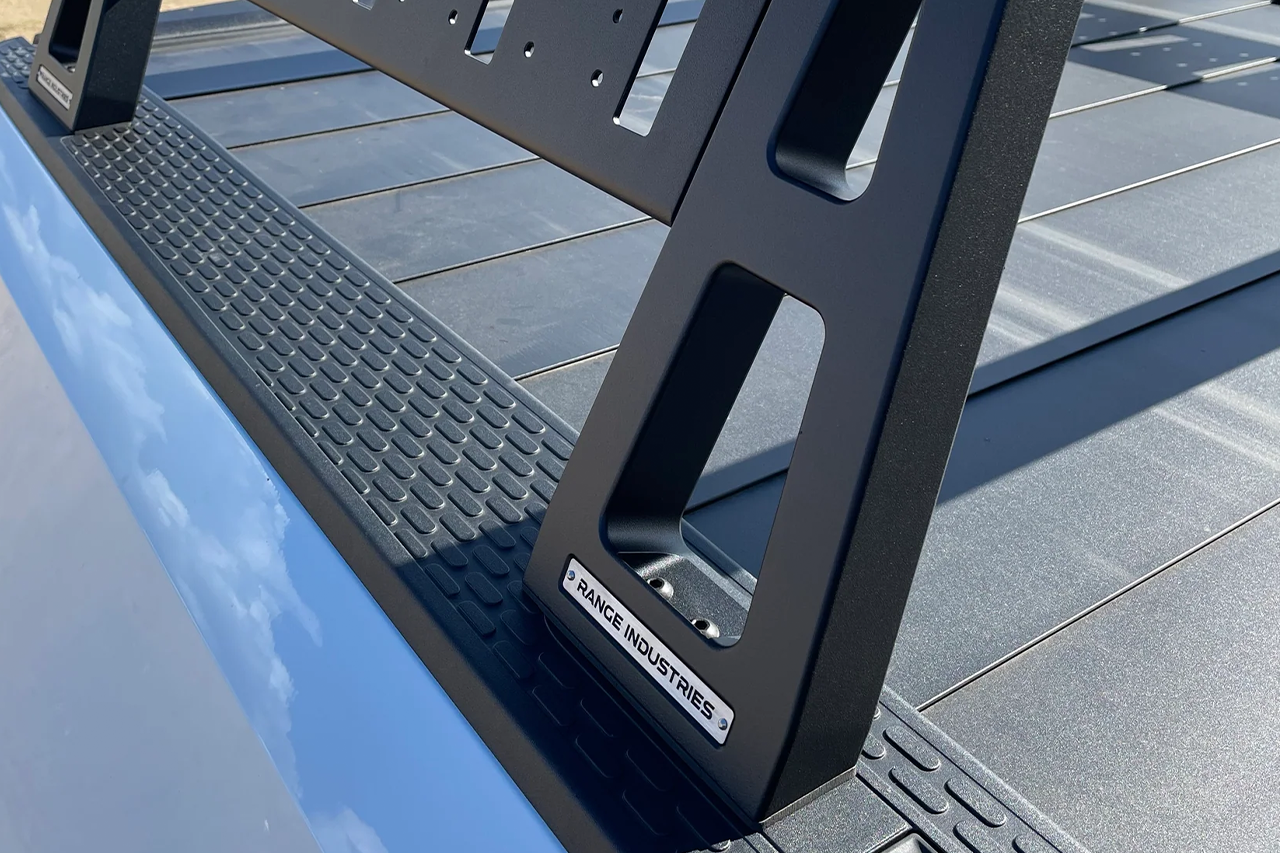

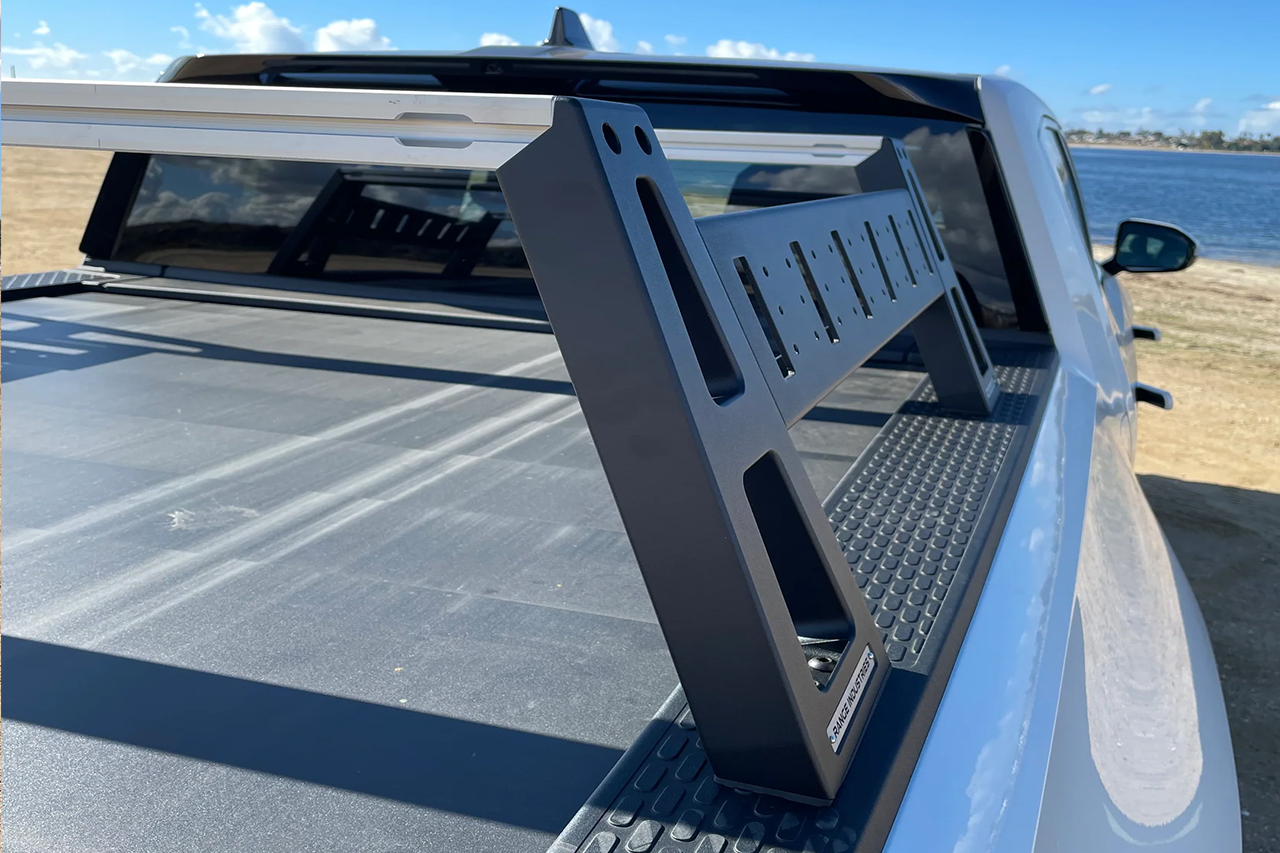

This medium-height rack for Rivian R1T is built to be rock-solid, using only aluminum and stainless-steel components for long-term durability in harsh weather and hard use. The uprights are CNC-machined from billet 6061-T6 aluminum and powder coated black to match the look of the Rivian R1T bed caps.

The crossbars are made from 3" x 1.5" 6063-T6 aluminum and anodized for corrosion resistance. They’re exceptionally rigid to help prevent rack deflection under heavy loads. Plus, they’re 8020-compatible, giving you nearly unlimited options for mounting accessories and gear.

What’s included: 4 uprights, 2 crossbars, 2 cargo panels or 4 extrusion bars, and all required mounting hardware. The fabricated cargo panels or extrusion bars also include t-slot provisions for mounting Rotopax and Quick Fist clamps.

Specifications:

• Designed for Rivian R1T
• Made in the USA 🇺🇸
• Stainless Steel Hardware
• Load Rating: 300 lbs dynamic, 800 lbs static
• Height from top of bed rails to top of crossbar: 13.5"
• Crossbar width: 47.5"
• Spacing between crossbars: 35.9" (outside to outside), 29.9" (inside to inside)
• Crossbar cross-section: 3" x 1.5"
• Rack weight: 52 lbs
• View installation instructions HERE
• View all Range Industries Racks HERE

Installation available:

• Van Nuys, California
• Atlanta, Georgia
